Your Ideas into Materiality
If you have a great Concept I can make it tangible
Following some Examples from Clients
Chassis for a HF-Horn including Driver, Electronics and Connectors

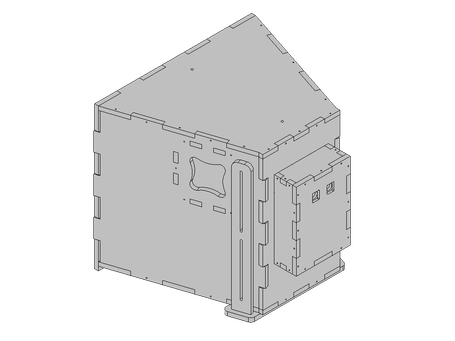

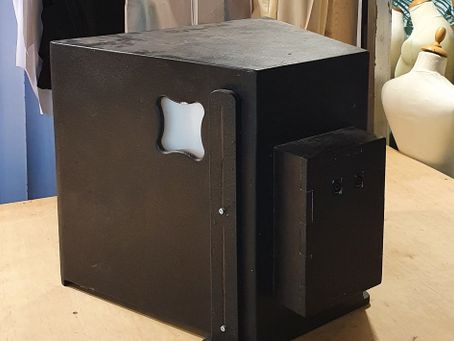

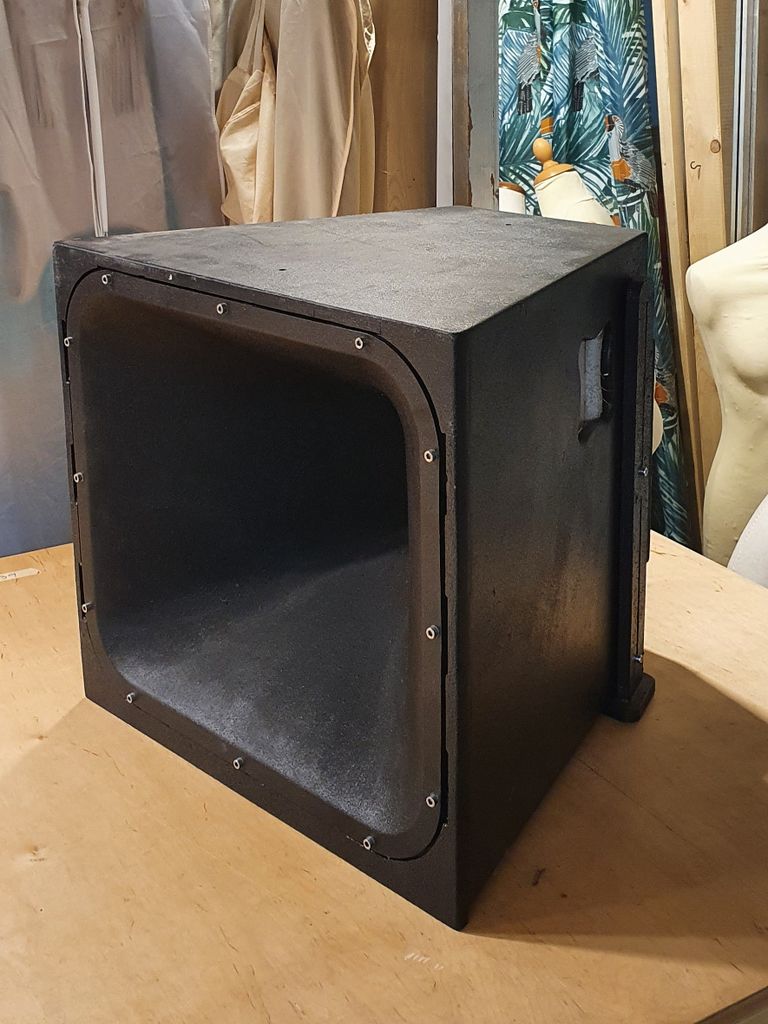

Prototype of the Chassis for a B&C ME464 HF-Horn with their DCX464 Coaxial Compression Driver. The Housing also includes room for the Bandpass Filter PCB.

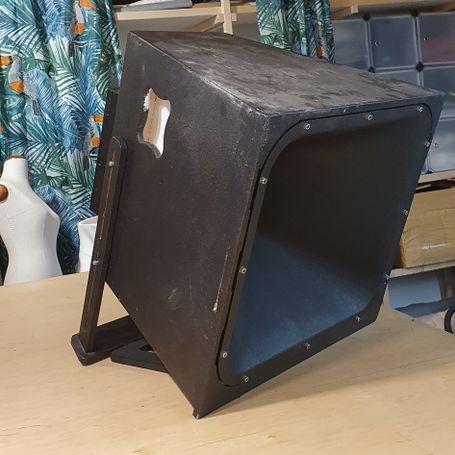

The Chassis can be tilted and has a hinged plate to strap it to another Chassis below.

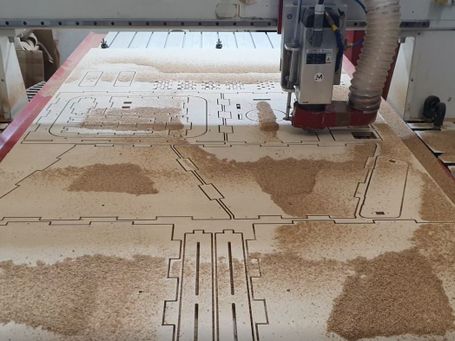

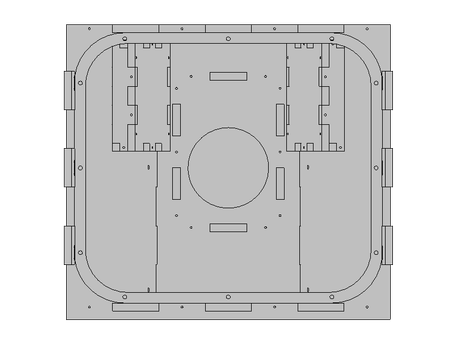

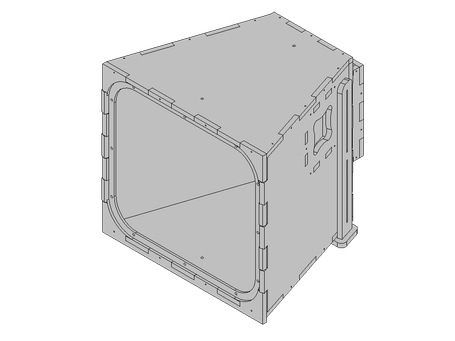

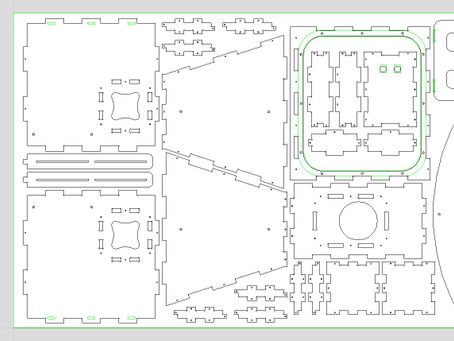

I used a 3D-CAD System for the Design, a 2,5D-CAM Software to prepare the Files for the Portal Milling Machine. The Material is 15 mm Birch Plywood.
Router Device for rounding the Edges of Balance Boards

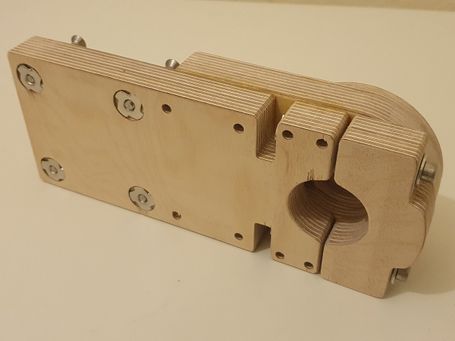

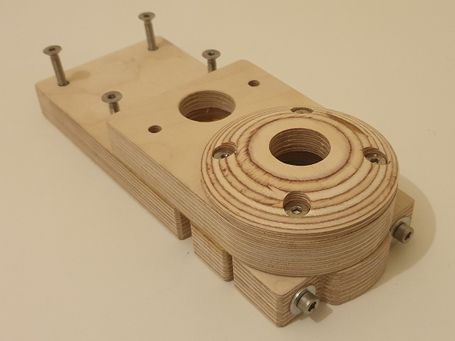

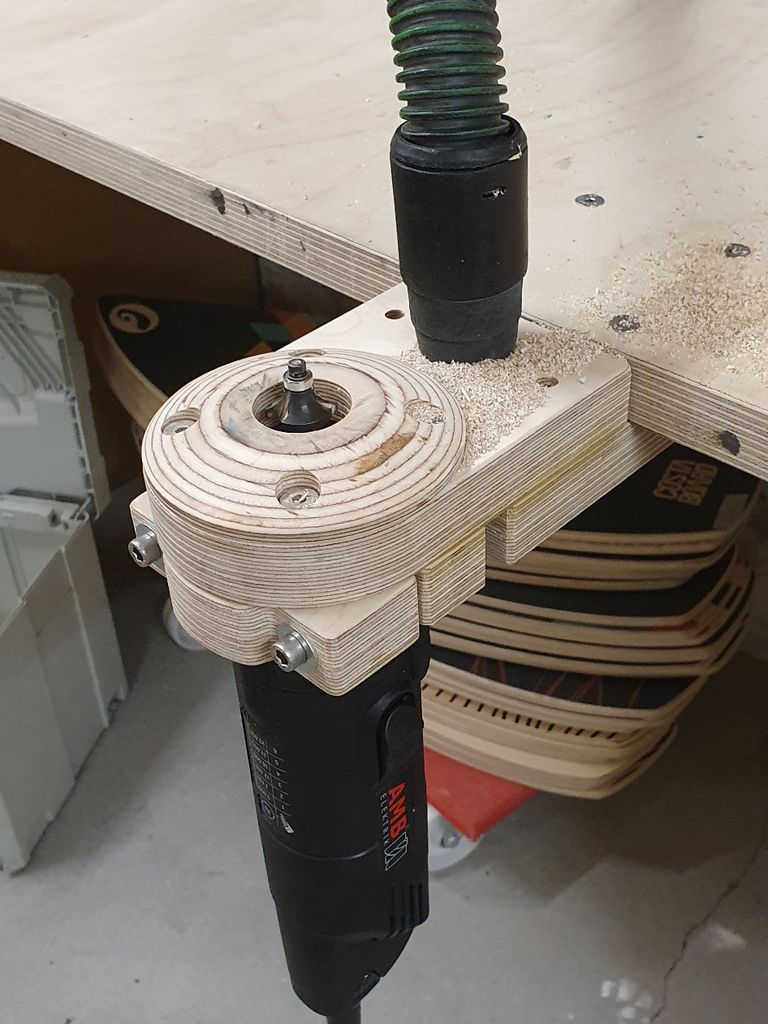

A Prototype made of Birch Plywood to round the Edges from Balance Boards. It is attached on a Workbench for best and easy handling. There is an Vacuum Channel integrated, the Cap is changable to try different Shapes and has a 43 mm Euronorm Holding Fixture for a AMB Router.

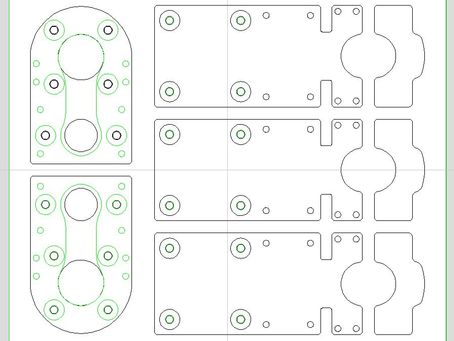

I used a 3D-CAD System for the Design, a 2,5D-CAM Software to prepare the Files for the Portal Milling Machine.

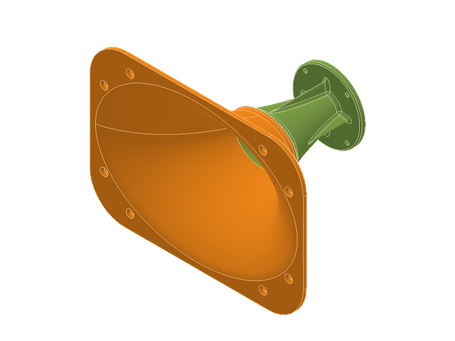

Tractrix Horn for HF-Compression Driver

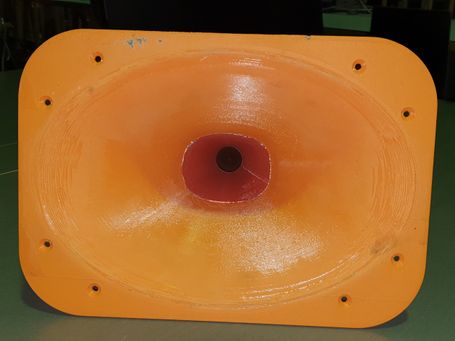

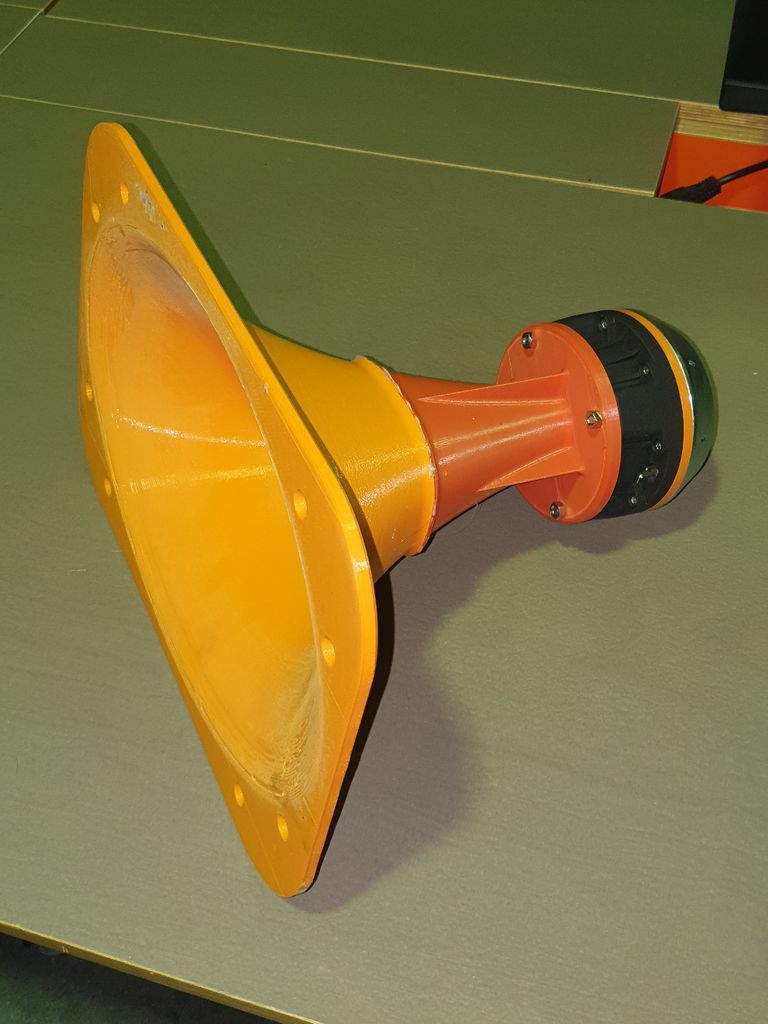

Custom HF Horn with Elliptical Tractrix Design for 1,4 inch Compression Driver. Audio Measurements were done and approved the Design for an excellent Sound Quality.

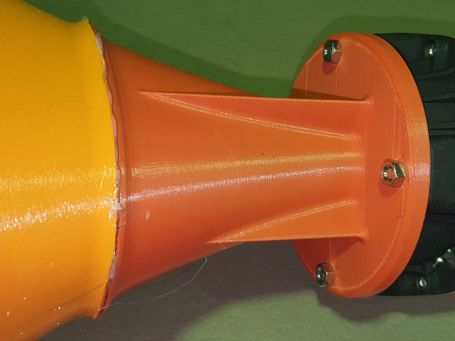

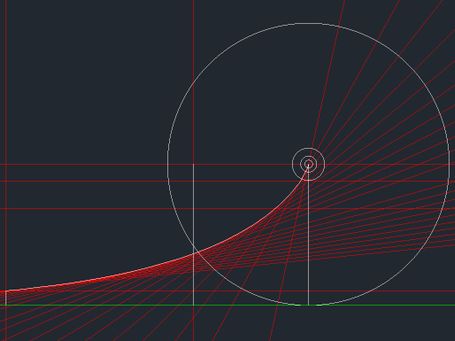

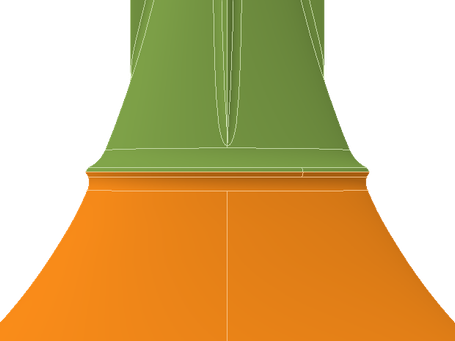

Tractrix Curve was designed in 2D and imported. 3D-CAD was used for the Remaining Design and one of MotionLab.Berlins 3D FDM-Printer was used for Producing the Parts.
Designs for an Business Exhibition

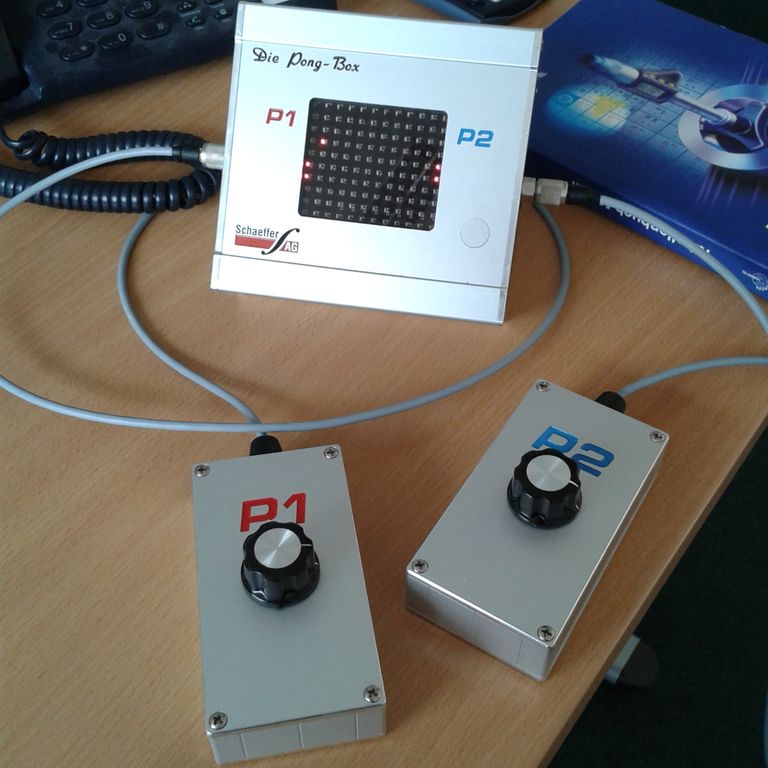

Designs I made for my former Employer Schaeffer AG for different Exhibitions.
Designs were made with 2D and 3D-CAD as well as the Schaeffer AG Software Frontpanel Designer.

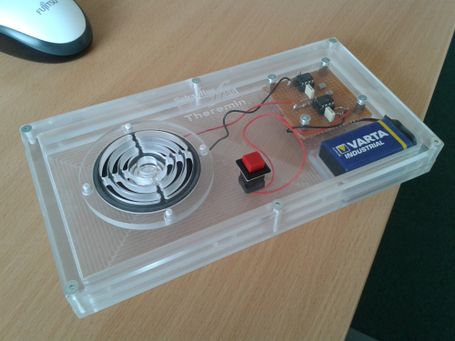

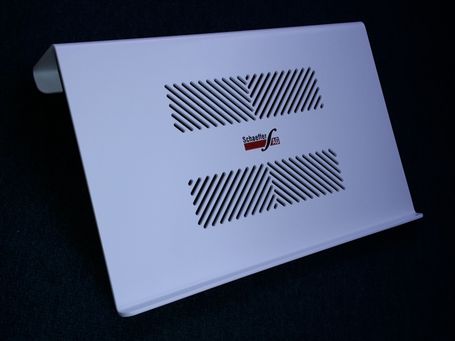

The Pieces are made from anodised Aluminium Panels and Acrylic Glass. Produced through the Schaffer AG Manufacturing Process.
